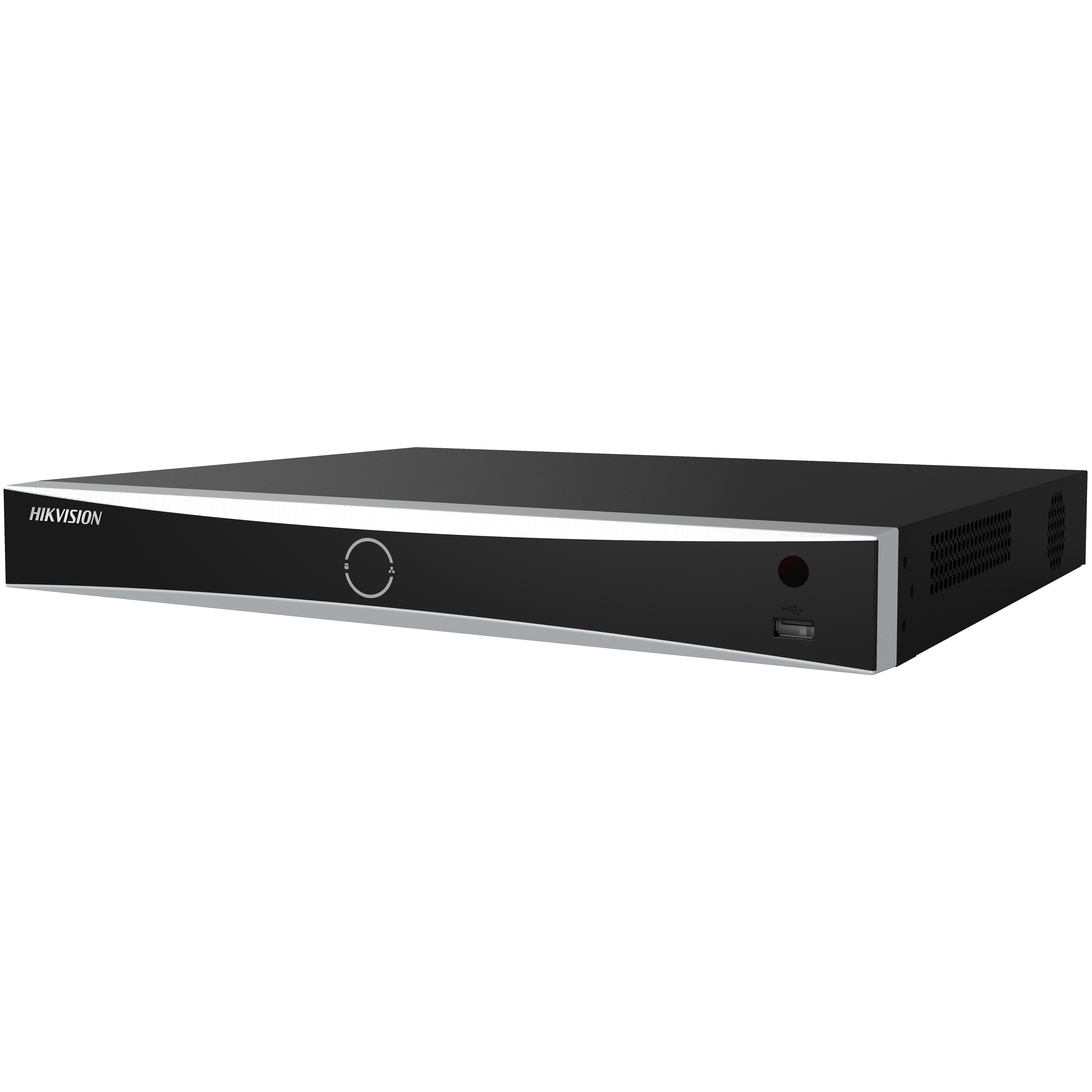

NVR 16-ch 1U K Series AcuSense 4K DS-7616NXI-K1

Specification

• Intelligent Analytics

• AI by Deviceperimeter protection, motion detection 2.0;Facial recognition,perimeter protection, motion detection 2.0

• AI by CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

• Facial Recognition

• Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search;NA

• Face Picture LibraryNA;Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)

• Facial Detection and Analytics PerformanceNA;1-ch, 8 MP

• Face Picture Comparison4-ch;NA

• Motion Detection 2.0

• By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm;All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm

• By CameraAll channels

• Perimeter Protection

• By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

• By CameraAll channels

• Video and Audio

• IP Video Input16-ch

• Incoming Bandwidth160 Mbps

• Outgoing Bandwidth80 Mbps

• HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

• Video Output ModeHDMI/VGA independent output

• CVBS OutputN/A

• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

• Decoding

• Decoding FormatH.265/H.265+/H.264+/H.264

• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous Playback16-ch

• Decoding Capability

  AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

  AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

• Stream TypeVideo, Video & Audio

• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

• Network

• Remote Connection128

• APIONVIF (profile S/G); SDK; ISAPI

• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface

• SATA1 SATA interface

• CapacityUp to 10 TB capacity for each HDD

• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

• Alarm In/OutN/A

• General

• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

• Power Supply12 VDC, 1.5 A

• Consumption≤ 10 W (without HDD)

• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity10% to 90%

• Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")

• ≤ 1 kg (without HDD, 2.2 lb.)

• Certification

• FCCN/A;Part 15 Subpart B, ANSI C63.4-2014

• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

• Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS;CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA
